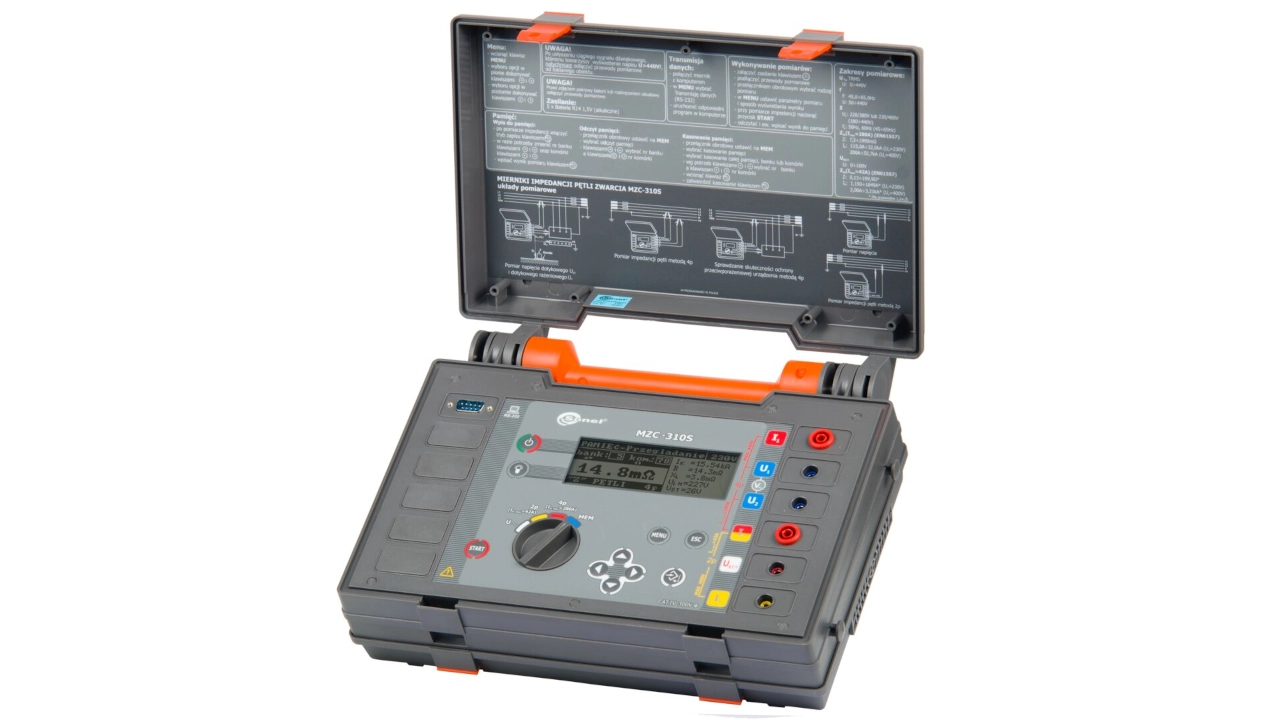

MZC-310S Earth fault loop impedance tester (WMGBMZC310)

MZC-310S Earth fault loop impedance tester (WMGBMZC310)

  • MZC-310S Earth fault loop impedance tester (WMGBMZC310)
    MZC-310S Earth fault loop impedance tester (WMGBMZC310)
    • Index: WMGBMZC310
    • Category: Earth fault loop impedance tester
    • Condition: New
    • Mains voltage up to max. 440V
      • Price (Net):
      • EUR 1888.00
      • Availability:
      • on request
      • Select quantity:
Description

Is the MZC-310S the right earth fault loop impedance tester for me?

The selection of the appropriate loop impedance measuring device primarily depends on its intended area of application. Therefore, you should first clarify exactly what you want to use the device for.

Start by considering the maximum mains voltage the measuring device needs to support. For example, are you working on 400 V, 690 V, or 800 V systems?

The MZC-310S allows measurements at mains voltages of up to 440 V.

Next, you should estimate the minimum and maximum loop impedance values that the device needs to cover.

The MZC-310S operates in the following measuring ranges: 7.2 mΩ – 1999 mΩ (four-wire measurement) and 0.13 Ω – 199.9 Ω (two-wire measurement).

To make your decision easier, this product page provides all relevant information, including datasheet values, compliance with standards, and an overview of standard and optional accessories.

Measuring touch voltage with the MZC-310S

In addition to loop and line impedance measurements, the MZC-310S also enables the detection of touch voltage, with measurements of up to 100 V possible. Two measurement methods are available for this purpose:

  • Touch voltage (voltage between conductive parts during simultaneous contact)
  • Shock (touch) voltage (voltage between a conductive part and the ground using a special measuring probe)

What can be measured with the MZC-310S earth fault loop impedance tester?

The following table provides a quick overview of the available measurements and functions of the MZC-310S loop impedance measuring device.

  • Legend:
    • check
    • Measurement possible (accessory required)
    • check
    • Measurement possible (accessory included)
    • close
    • Measurement not possible
Measurement MZC-310S
Loop impedance
Loop impedance (Four-wire measurement) check
Loop impedance (Two-wire measurement) check
Prospective Short-Circuit Current (calculated) check
Voltage
Voltage measurement check
Frequency measurement check
Touch voltage measurement check
Shock (touch) voltage measurement check
Technical data

Datasheet values MZC-310S

The following table provides a detailed list of the technical specifications of the MZC-310S.

If you would first like to get an overview, we recommend our comparison chart of the MZC series earth fault loop impedance testers. There, you can quickly compare the devices side by side.

Measurement function Measurement range Display range Resolution Accuracy
Mains voltage
AC mains voltage 0 – 440 V 0 – 440 V 1 V ±(2% of m.val. + 2 digits)
Frequency
Frequency 45 – 65 Hz 45 – 65 Hz 0.1 Hz ±(0.1% of m.val. + 1 digit)
Loop impedance (Four-wire measurement) max. 280 A: 280 A (400 V), 160 A (230 V)
Loop impedance (ZS) 0.0 – 199.9 mΩ
acc. to IEC 61557-3		 0.0 – 199.9 mΩ 0.1 mΩ ±(2% of m.val. + 2 mΩ)
200 – 1999 mΩ 1 mΩ
Resistance (R) 0,0 – 1999 mΩ 0.0 – 199.9 mΩ 0.1 mΩ ±(2% of m.val. + 2 mΩ) of ZS
Reactance (X) 200 – 1999 mΩ 1 mΩ
Short-circuit current (IK) 115.0 A – 32.0 kA
UN = 230 V		 115 A – 199.9 A 0.1 A Calculated from the error of the loop impedance
200 A – 1999 A 1 A
2.00 kA – 19.99 kA 0.01 kA
20.0 kA – 199.9 kA 0.1 kA
200 kA – 230 kA 1 kA
200 A – 55.7 kA
UN = 400 V		 115 A – 199.9 A 0.1 A
200 A – 1999 A 1 A
2.00 kA – 19.99 kA 0.01 kA
20.0 kA – 199.9 kA 0.1 kA
200 kA – 400 kA 1 kA
Touch voltage
Touch voltage 0 – 100 V 0 – 100 V 1 V ±(10% of m.val. + 2 digits)
Shock (touch) voltage
Loop impedance (Two-wire-measurement) max. 42 A (400 V), 24 A (230V)
Loop impedance (ZS) 0.13 Ω - 199.9 Ω
(Test lead 1.2m)
acc. to IEC 61557-3		 0.00 – 19.99 Ω 0.01 Ω ±(2% of m.val. + 3 digits)
20.0 – 199.9 Ω 0.1 Ω ±(3% of m.val. + 3 digits)
0.15 Ω - 199.9 Ω
(Test lead 5m)
acc. to IEC 61557-3		 0.00 – 19.99 Ω 0.1 Ω ±(2% of m.val. + 3 digits)
20.0 – 199.9 Ω 0.1 Ω ±(3% of m.val. + 3 digits)
0.19 Ω - 199.9 Ω
(Test lead 10m)
acc. to IEC 61557-3		 0.00 – 19.99 Ω 0.1 Ω ±(2% of m.val. + 3 digits)
20.0 – 199.9 Ω 0.1 Ω ±(3% of m.val. + 3 digits)
0.25 Ω - 199.9 Ω
(Test lead 20m)
acc. to IEC 61557-3		 0.00 – 19.99 Ω 0.1 Ω ±(2% of m.val. + 3 digits)
20.0 – 199.9 Ω 0.1 Ω ±(3% of m.val. + 3 digits)
Resistance (R) 0.00 – 199.9 Ω 0.00 – 19.99 Ω 0.01 Ω ±(2% of m.val. + 3 digits) of ZS
Reactance (X) 20.0 – 199.9 Ω 0.1 Ω ±(3% of m.val. + 3 digits) of ZS
Short-circuit current (IK),
UN = 230V		 1.150 A – 1849 A
(Test lead 1.2m)
acc. to IEC 61557-3		 1.150 A – 1.999 A 0.001 A Calculated from the error of the loop impedance
2.00 A – 19.99 A 0.01 A
20.0 A – 199.9 A 0.1 A
200 A – 1999 A 1 A
2.00 kA – 19.99 kA 0.01 kA
20.0 – 40.0 kA 0.1 kA
1.150 A – 1539 A
(Test lead 5m)
acc. to IEC 61557-3		 1.150 A – 1.999 A 0.1 A
2.00 A – 19.99 A 0.01 A
20.0 A – 199.9 A 0.1 A
200 A – 1999 A 1 A
2.00 kA – 19.99 kA 0.01 kA
20.0 – 40.0 kA 0.1 kA
1.150 A – 1262 A
(Test lead 10m)
acc. to IEC 61557-3		 1.150 A – 1.999 A 0.1 A
2.00 A – 19.99 A 0.01 A
20.0 A – 199.9 A 0.1 A
200 A – 1999 A 1 A
2.00 kA – 19.99 kA 0.01 kA
20.0 – 40.0 kA 0.1 kA
1.150 A – 924 kA
(Test lead 20m)
acc. to IEC 61557-3		 1.150 A – 1.999 A 0.1 A
2.00 A – 19.99 A 0.01 A
20.0 A – 199.9 A 0.1 A
200 A – 1999 A 1 A
2.00 kA – 19.99 kA 0.01 kA
20.0 – 40.0 kA 0.1 kA
Short-circuit current (IK),
UN = 400V		 2.00 A – 3.21 kA
(Test lead 1.2m)
acc. to IEC 61557-3		 1.150 A – 1.999 A 0.001 A Calculated from the error of the loop impedance
2.00 A – 19.99 A 0.01 A
20.0 A – 199.9 A 0.1 A
200 A – 1999 A 1 A
2.00 kA – 19.99 kA 0.01 kA
20.0 – 40.0 kA 0.1 kA
2.00 A – 2.67 kA
(Test lead 5m)
acc. to IEC 61557-3		 1.150 A – 1.999 A 0.1 A
2.00 A – 19.99 A 0.01 A
20.0 A – 199.9 A 0.1 A
200 A – 1999 A 1 A
2.00 kA – 19.99 kA 0.01 kA
20.0 – 40.0 kA 0.1 kA
2.00 A – 2.19 kA
(Test lead 10m)
acc. to IEC 61557-3		 1.150 A – 1.999 A 0.1 A
2.00 A – 19.99 A 0.01 A
20.0 A – 199.9 A 0.1 A
200 A – 1999 A 1 A
2.00 kA – 19.99 kA 0.01 kA
20.0 – 40.0 kA 0.1 kA
2.00 A – 1607 A
(Test lead 20m)
acc. to IEC 61557-3		 1.150 A – 1.999 A 0.1 A
2.00 A – 19.99 A 0.01 A
20.0 A – 199.9 A 0.1 A
200 A – 1999 A 1 A
2.00 kA – 19.99 kA 0.01 kA
20.0 – 40.0 kA 0.1 kA

Table: Datasheet values MZC-310S

Conformity to standards of the MZC-310S

The MZC-310S loop impedance measuring device complies with applicable EU standards, which are based on IEC standards and EU directives and have been incorporated into national regulations such as the BS standards.

The two tables below show, on the one hand, the standard compliance related to the measurement methods used, and on the other hand, the standards that the MZC-310S measuring device itself complies with.

Standards compliance of the MZC-310S: measurement methods
IEC 61557: Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC. Equipment for testing, measuring or monitoring of protective measures
BS EN IEC 61557-3 Part 3: Loop impedance

Standards compliance of the MZC-310S: measurement methods
Standards compliance of the MZC-310S: the tester
Electromagnetic compatibility (EMC 2014/30/EU)
BS EN IEC 61326-1 Electrical equipment for measurement, control, and laboratory use – EMC requirements. Part 1: General requirements
BS EN IEC 61326-2-2 Electrical equipment for measurement, control, and laboratory use – EMC requirements. Part 2-2: Particular requirements – Test configurations, operational conditions and performance criteria for portable test, measuring and monitoring equipment used in low-voltage distribution systems
Low voltage directive (LVD 2014/35/EU)
BS EN IEC 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use. Part 1: General requirements
BS EN IEC 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use. Part 2-030: Particular requirements for testing and measuring circuits
BS EN IEC 61010-031 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement

Standards compliance of the MZC-310S: the tester
Download

User manual MZC-310S

User manual MZC-310S download

Datasheet MZC-310S

Datasheet MZC-310S download

Declaration of conformity MZC-310S

Declaration of conformity MZC-310S download
Scope of delivery
  • Legend:
    • check
    • Accessory is included in the scope of delivery
    • close
    • Accessory is not included in the scope of delivery
Scope of delivery MZC-310S
Two-wire test lead, 3m, (12/32A) U1/I1 (WAPRZ003DZBBU1I1)
check

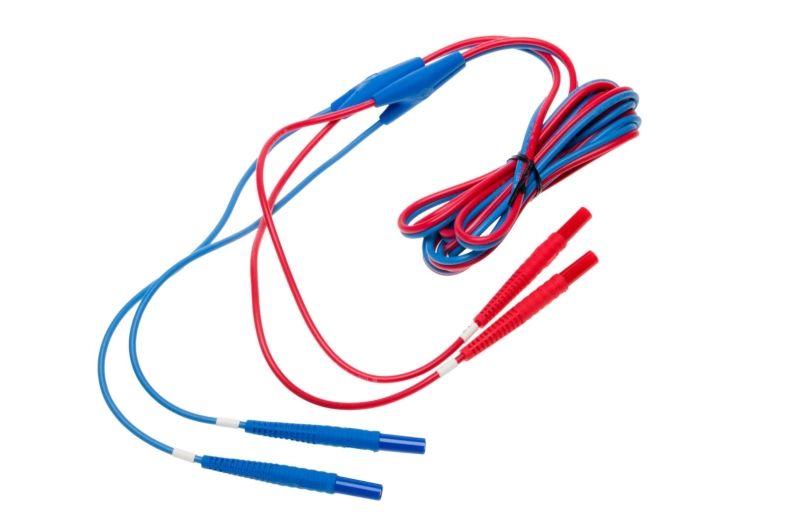

Two-wire test lead, 3m, (12/32A) U2/I2 (WAPRZ003DZBBU2I2)
check

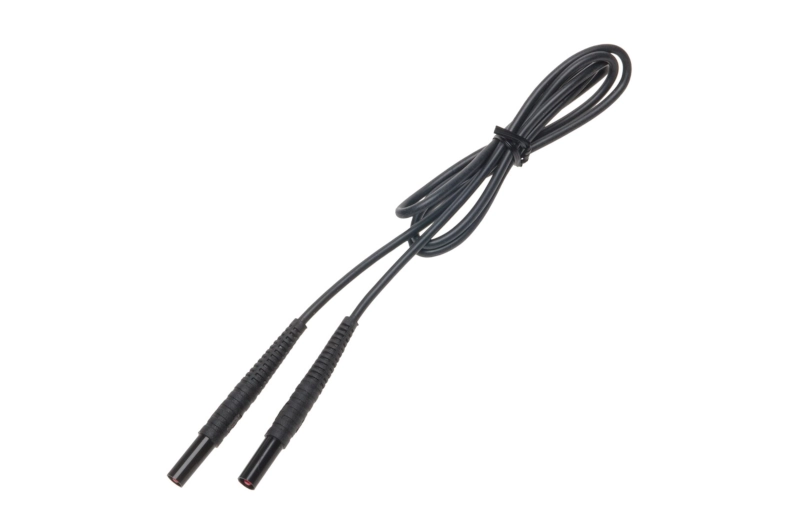

Test lead 1.2 m, yellow, 1kV (WAPRZ1X2YEBB)
check
Test lead 1,2m, black, 1 kV (WAPRZ1X2BLBB)
check

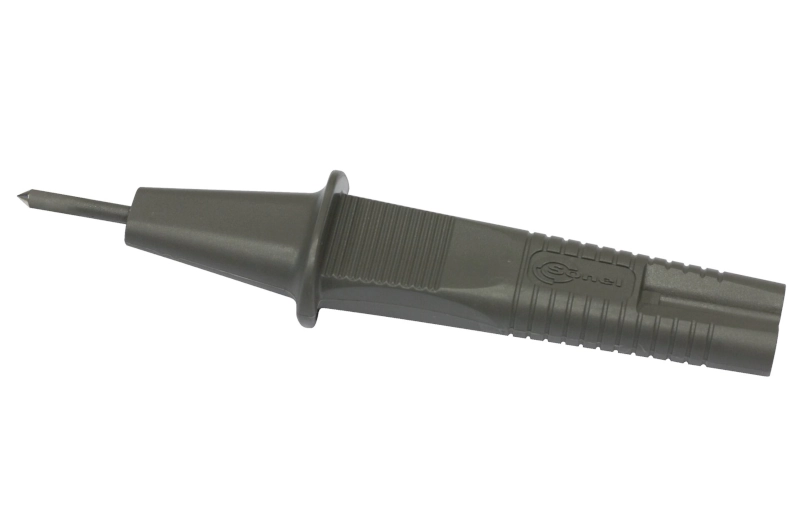

Kelvin test probe, 1 kV (WASONSPGB1)
check

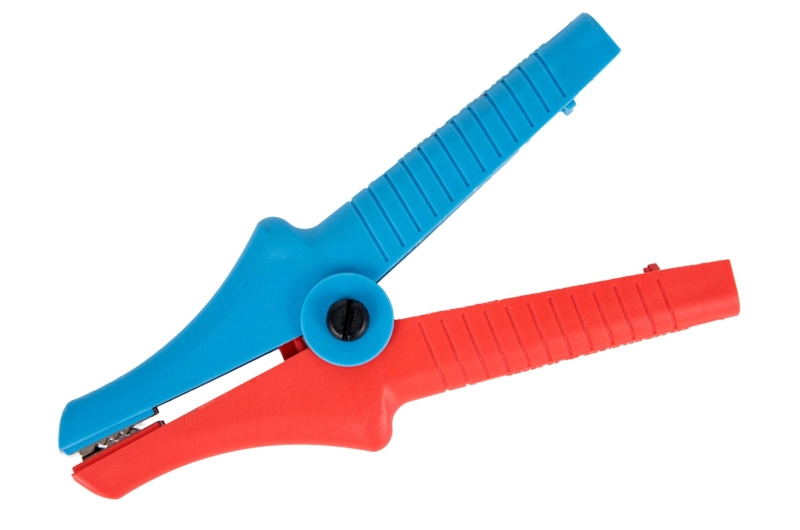

Kelvin clamp, 1 kV, 25 A (WAKROKELK06)
check

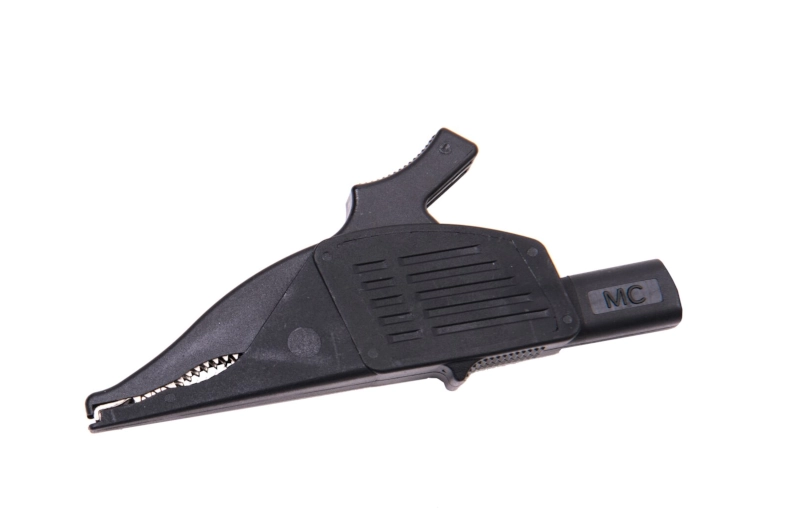

Crocodile clip, black, 1 kV, 32 A (WAKROBL30K03)
check

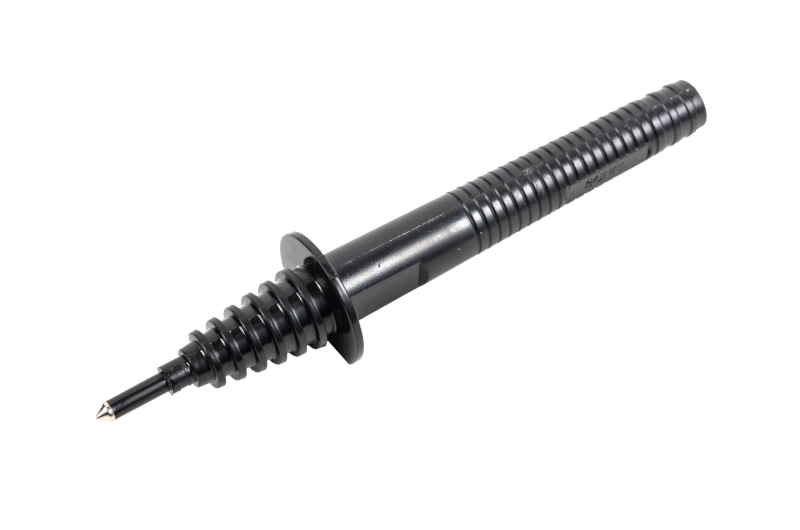

Test probe, black (WASONBLOGB1)
check
Test probe, yellow (WASONYEOGB1)
check

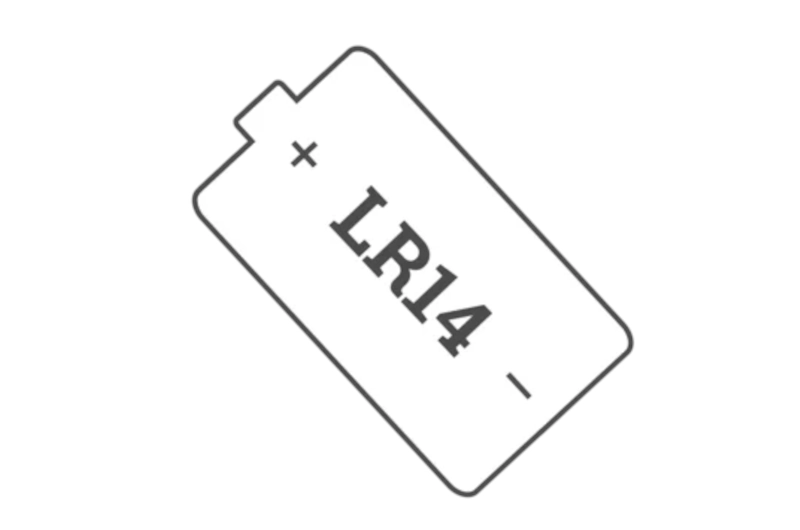

Battery 1.5 V LR14 (C) (WABATLR14)
check

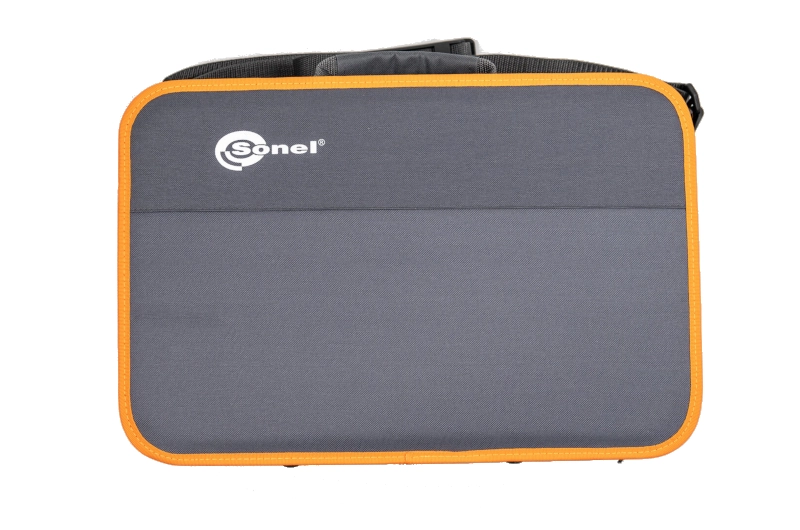

Carrying case L-1 (WAFUTL1)
check

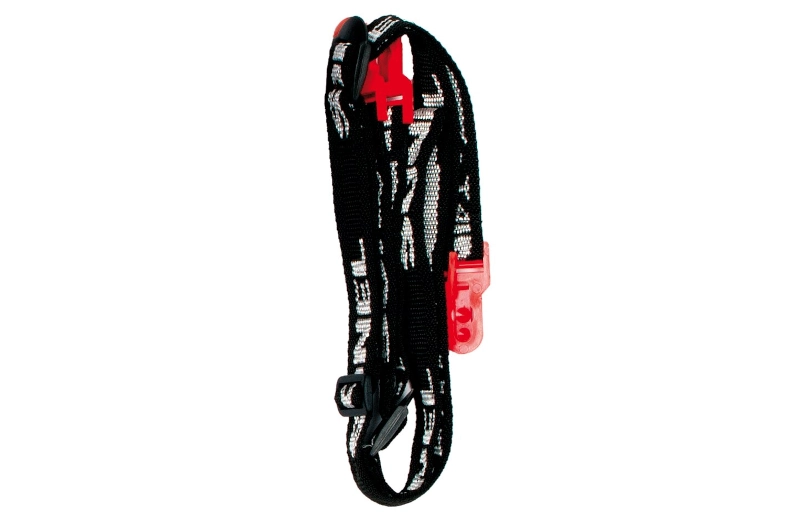

Carrying strap (WAPOZSZE1)
check

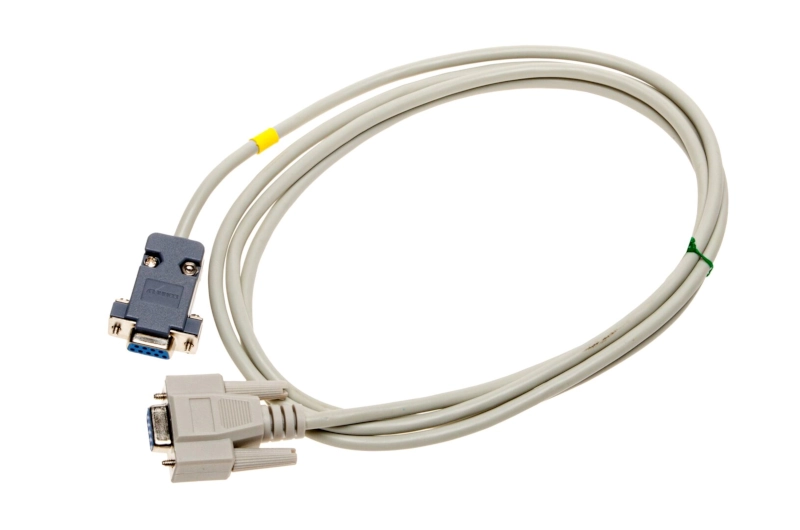

Serial RS232 cable (WAPRZRS232)
check
Factory calibration certificate (WADOKCK)
check

List of items included with the MZC-310S
Accessories

Complete accessory list for the MZC-310S earth fault loop impedance tester

Below you will find the complete list of accessories for the MZC-310S loop impedance tester according to BS EN 61557-3. The list is organized by index.

Index Description

Two-wire test lead, 6m, (10/25A) U1/I1

Two-wire test lead, 6m, (10/25A) U2/I2

Test lead 5m, yellow, 1kV

Test lead 10m, yellow, 1 kV

Test lead 20m, yellow, 1 kV

Carrying case L-2

Sonel Reader: Free software for transferring data from the tester to a PC

Sonel Reports Plus: Software for creating test documentation

Accessory list for the MZC-310S earth fault loop impedance tester (by index)
