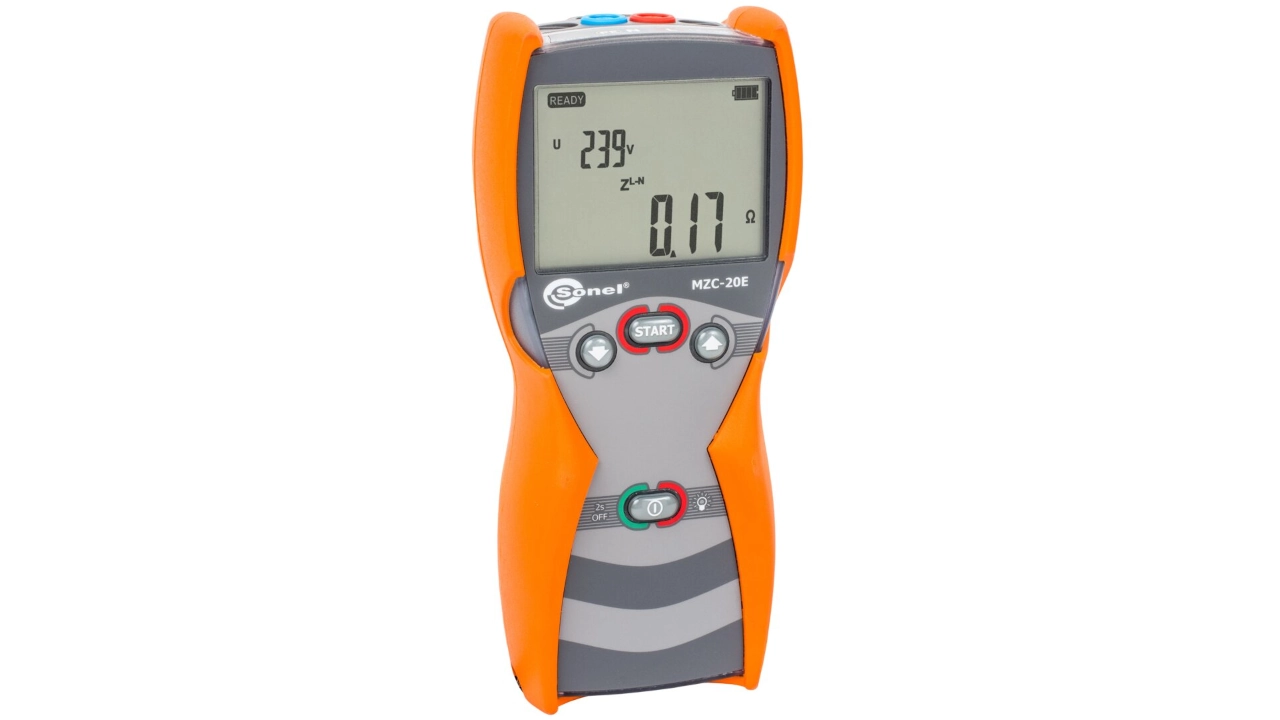

MZC-20E Earth fault loop impedance tester (WMGBMZC20E)

MZC-20E Earth fault loop impedance tester (WMGBMZC20E)

  • MZC-20E Earth fault loop impedance tester (WMGBMZC20E)
    MZC-20E Earth fault loop impedance tester (WMGBMZC20E)
    • Index: WMGBMZC20E
    • Category: Earth fault loop impedance tester
    • Condition: New
    • Mains voltage up to max. 440V
      • Price (Net):
      • EUR 348.00
      • Availability:
      • on request
      • Select quantity:
Description

Is the MZC-20E the right earth fault loop impedance tester for me?

The MZC-20E is an earth fault loop impedance tester with very simple operation. Its functionality is limited exclusively to measuring loop impedance and voltage. The resulting prospective short-circuit current is calculated from these measurements.

The MZC-20E is an affordable earth fault loop impedance tester that does without extensive additional features such as memory and data transfer, making it ideal for professional use on construction sites and in industrial settings.

The device can measure earth fault loop impedance at mains voltages of up to 440 V. The measurement is carried out using a two-wire method and can detect impedances as low as 0.24 Ω.

Direct comparison between the MZC-20E and the MZC-304F

Both testers come in the same ergonomic housing. However, they differ significantly in terms of functionality. The MZC-20E is a simple earth fault loop impedance tester for measuring voltage and loop impedance (the short-circuit current is calculated from the measured values). A memory function is not included.

The MZC-304F is about twice as expensive but offers significantly more features and measurement methods. A detailed description of the device can be found on the MZC-304F product page.

Scope of delivery MZC-20E (WMGBMZC20E)

Scope of delivery MZC-20E (WMGBMZC20E)

What can be measured with the MZC-20E earth fault loop impedance tester?

The following table provides a compact overview of the measurement functions and possible applications of the MZC-20E earth fault loop impedance tester.

  • Legend:
    • check
    • Measurement possible (accessory required)
    • check
    • Measurement possible (accessory included)
    • close
    • Measurement not possible
Measurement MZC-20E
Loop impedance
Loop impedance (Two-wire measurement) check
Prospective Short-Circuit Current (calculated) check
Voltage
Voltage measurement check
Technical data

Datasheet values MZC-20E

The following table provides a detailed list of the technical specifications of the MZC-20E.

If you would first like to get an overview, we recommend our comparison chart of the MZC series earth fault loop impedance testers. There, you can quickly compare the devices side by side.

Measurement function Measurement range Display range Resolution Accuracy
Mains voltage
AC mains voltage 0 – 440 V 0 – 440 V 1 V ±(2% of m.val. + 3 digits)
Loop impedance (Two-wire measurement) max. 15.3 A (230V), 26.7 A (400V)
Loop impedance (ZS) 0.24 – 200 Ω
(Test lead 1,2m)		 0.00 – 19.99 Ω 0.01 Ω ±(2.5% of m.val. + 5 digits)
20.0 – 99.9 Ω 0.1 Ω ±(2.5% of m.val. + 3 digits)
100 – 200 Ω 1 Ω ±(3% of m.val. + 3 digits)
0.26 – 200 Ω
(Test lead 5m)		 0.00 – 19.99 Ω 0.01 Ω ±(2.5% of m.val. + 5 digits)
20.0 – 99.9 Ω 0.1 Ω ±(2.5% of m.val. + 3 digits)
100 – 200 Ω 1 Ω ±(3% of m.val. + 3 digits)
0.28 – 200 Ω
(Test lead 10m)		 0.00 – 19.99 Ω 0.01 Ω ±(2.5% of m.val. + 5 digits)
20.0 – 99.9 Ω 0.1 Ω ±(2.5% of m.val. + 3 digits)
100 – 200 Ω 1 Ω ±(3% of m.val. + 3 digits)
0.35 – 200 Ω
(Test lead 20m)		 0.00 – 19.99 Ω 0.01 Ω ±(2.5% of m.val. + 5 digits)
20.0 – 99.9 Ω 0.1 Ω ±(2.5% of m.val. + 3 digits)
100 – 200 Ω 1 Ω ±(3% of m.val. + 3 digits)
Resistance (R) Calculated and displayed for ZS < 10 Ω 0 – 9.99 Ω 0.01 Ω ±(5% v.Mw. + 5 Digits) of ZS
Reactance (X)
Short-circuit current Calculated from the measuring range of ZS and the nominal voltage 1.15 – 9.99 A 0.01 A Calculated from the error of the loop impedance
10.0 – 99.9 A 0.1 A
100 – 999 A 1 A
1.00 – 9.99 kA 0.01 kA
10.0 – 40 kA 0.1 kA

Table: Datasheet values MZC-20E

Conformity to standards of the MZC-20E

The MZC-20E earth fault loop impedance tester complies with current European standards, which are based on IEC standards and EU directives incorporated into national regulations.

The following tables illustrate the standards compliance of the MZC-20E:

  • The first table shows compliance with the relevant measurement methods.
  • The second table provides an overview of the general standards the device itself meets.
Standards compliance of the MZC-20E: measurement methods
IEC 61557: Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC. Equipment for testing, measuring or monitoring of protective measures
BS EN IEC 61557-3 Part 3: Loop impedance

Standards compliance of the MZC-20E: measurement methods.
Standards compliance of the MZC-20E: the tester.
Electromagnetic compatibility (EMC 2014/30/EU)
BS EN IEC 61326-1 Electrical equipment for measurement, control, and laboratory use – EMC requirements. Part 1: General requirements
BS EN IEC 61326-2-2 Electrical equipment for measurement, control, and laboratory use – EMC requirements. Part 2-2: Particular requirements – Test configurations, operational conditions and performance criteria for portable test, measuring and monitoring equipment used in low-voltage distribution systems
Low voltage directive (LVD 2014/35/EU)
BS EN IEC 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use. Part 1: General requirements
BS EN IEC 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use. Part 2-030: Particular requirements for testing and measuring circuits
BN EN IEC 61010-031 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement

Standards compliance of the MZC-20E: the tester.
Download

User manual MZC-20E

User manual MZC-20E download

Datasheet MZC-20E

Datasheet MZC-20E download

Declaration of conformity MZC-20E

Declaration of conformity MZC-20E download
Scope of delivery
  • Legend:
    • check
    • Accessory is included in the scope of delivery
    • close
    • Accessory is not included in the scope of delivery
Scope of delivery MZC-20E
Test lead 1,2m, red, 1 kV (WAPRZ1X2REBB)
check
Test lead 1,2m, blue, 1 kV (WAPRZ1X2BUBB)
check
Test probe, red (WASONREOGB1)
check
Test probe, blue (WASONBUOGB1)
check
Alligator clip, red, 1 kV, 20 A (WAKRORE20K02)
check
Hook for hanging the tester (WAPOZUCH1)
check

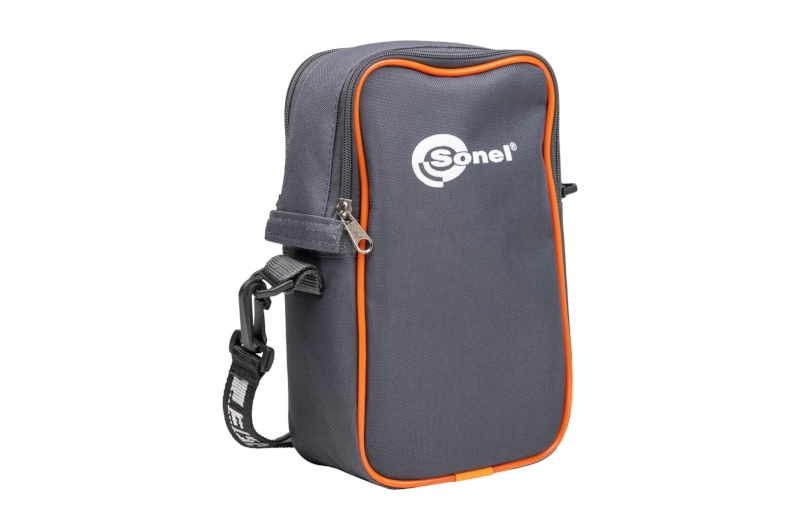

Carrying case M-13 (WAFUTM13)
check
Carrying strap M-1 (WAPOZSZE4)
check
4x AA battery LR06 (15A) 1.5 V (WABATAA)
check
Factory calibration certificate (WADOKCK)
check

List of items included with the MZC-20E
Accessories

Complete accessory list for the MZC-20E earth fault loop impedance tester

Below is a complete overview of all accessories for the MZC-20E loop impedance tester, sorted by item number.

Index Description

AGT-16T: CEE measurement adapter for 16A industrial socket (3-pole)

AGT-16C: CEE measurement adapter for 16A three-phase sockets (4-pole)

AGT-16P: CEE measurement adapter for 16A three-phase sockets (5-pole)

AGT-32T: CEE measurement adapter for 32A industrial socket (3-pole)

AGT-32C: CEE measurement adapter for 32A three-phase sockets (4-pole)

AGT-32P: CEE measurement adapter for 32A three-phase sockets (5-pole)

AGT-63P: CEE measurement adapter for 63A three-phase sockets (5-pole)

Test lead 5m, red, 1kV

Test lead 10m, red, 1kV

Test lead 20m, red, 1kV

Test probe, yellow (WASONREOGB1)

SP-2m: Telescopic test probe

Accessory list for the MZC-20E earth fault loop impedance tester (by item number)
